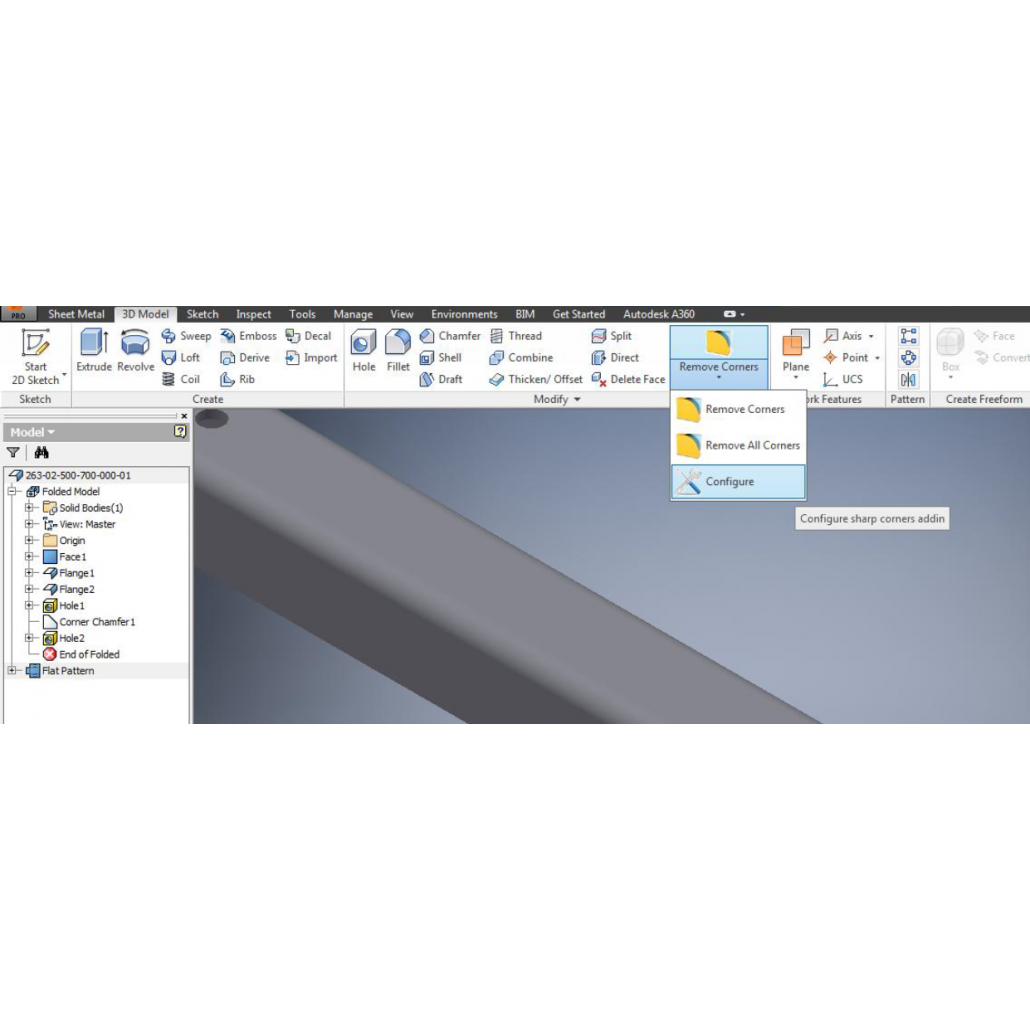

Inventor Sharp Corner Remover
$99.99
ONE-TIME LICENSE
2.6.4
CURRENT VERSION
Windows 64
OPERATING SYSTEM
2.4 MB
DOWNLOAD SIZE
OVERVIEW
Eliminate sharp edges early — protect downstream manufacturing
Inventor Sharp Corner Remover detects and rounds sharp internal and external corners across parts and assemblies before they reach fabrication. It prevents costly rework caused by unmachined edges, toolpath failures, and stress concentration points that lead to part fatigue or cracking in production.
Select a part or assembly, set your minimum fillet radius, and the tool identifies every sharp edge that falls below threshold — applying consistent rounds in a single pass, so engineers don't have to chase corners manually across complex geometry.
Why teams need it
Sharp corners increase stress concentrations by up to 3× at junctions, causing premature failure under cyclic loads. CNC toolpaths cannot follow zero-radius internal corners, forcing manual post-processing. Sheet metal bends crack at sharp folds. Catching these issues in design — not on the shop floor — reduces scrap rates and shortens release cycles.
CAPABILITIES
What it handles for you
Four core behaviors cover the day-to-day reality of managing large, deeply-referenced Inventor assemblies.
Full reference tree autosave
Saves all referenced parts, assemblies, and drawings tied to the active assembly in one automated pass.
iLogic & external rule support
Built for workflows where rules trigger on file Open or Save events and must run across every linked document.
Automated drawing QC
Step through a sequence of drawings for quality checks without manually opening and closing each one.
Open-save-close automation
Runs the open-save-close cycle in auto mode across all referenced documents of an assembly.
Simple license activation
Trial-to-paid activation flow with a license key issued directly by the Monarch support team.
Broad version support
Works across Autodesk Inventor and Inventor Professional, versions 2013 through 2022.
DETAILS
Additional information
Current Version
2.6.4
Last Updated
25 May 2023
Release Date
13 Sep 2013
Language
English
Operating System
Windows 64
Download Size
2.4 MB
Compatible With
Inventor / Inventor Pro 2013–2022
Customer Support
info@monovative.com
CHANGELOG
Version history
2.6.4
25 May 2023
Digitally signed release.
2.6.3
18 Nov 2022
Updated for Inventor 2023 compatibility.
2.6.2
2 Jan 2020
Picture box enable/disable support added.
2.6.1
16 Feb 2017
Changed help URL and button enablement behavior.
2.6.0
16 Feb 2017
Added document-type validation to all Tools tab buttons for zero-doc and assembly contexts; fixed a license activator issue by removing stale add-in files.
LICENSING
Trial and activation, in three steps
Start your 7-day trial
Every install ships with a 7-day trial license. The license window opens automatically on first launch.
Request your license key
Submit your details to info@monovative.com, or use the in-app "Send Mail" option to request a key directly.
Activate
Enter the received key and press Activate. Installation and license management both require administrator privileges.
MORE FROM MONARCH
Related products
QUICK HELP
DETAILED HELP

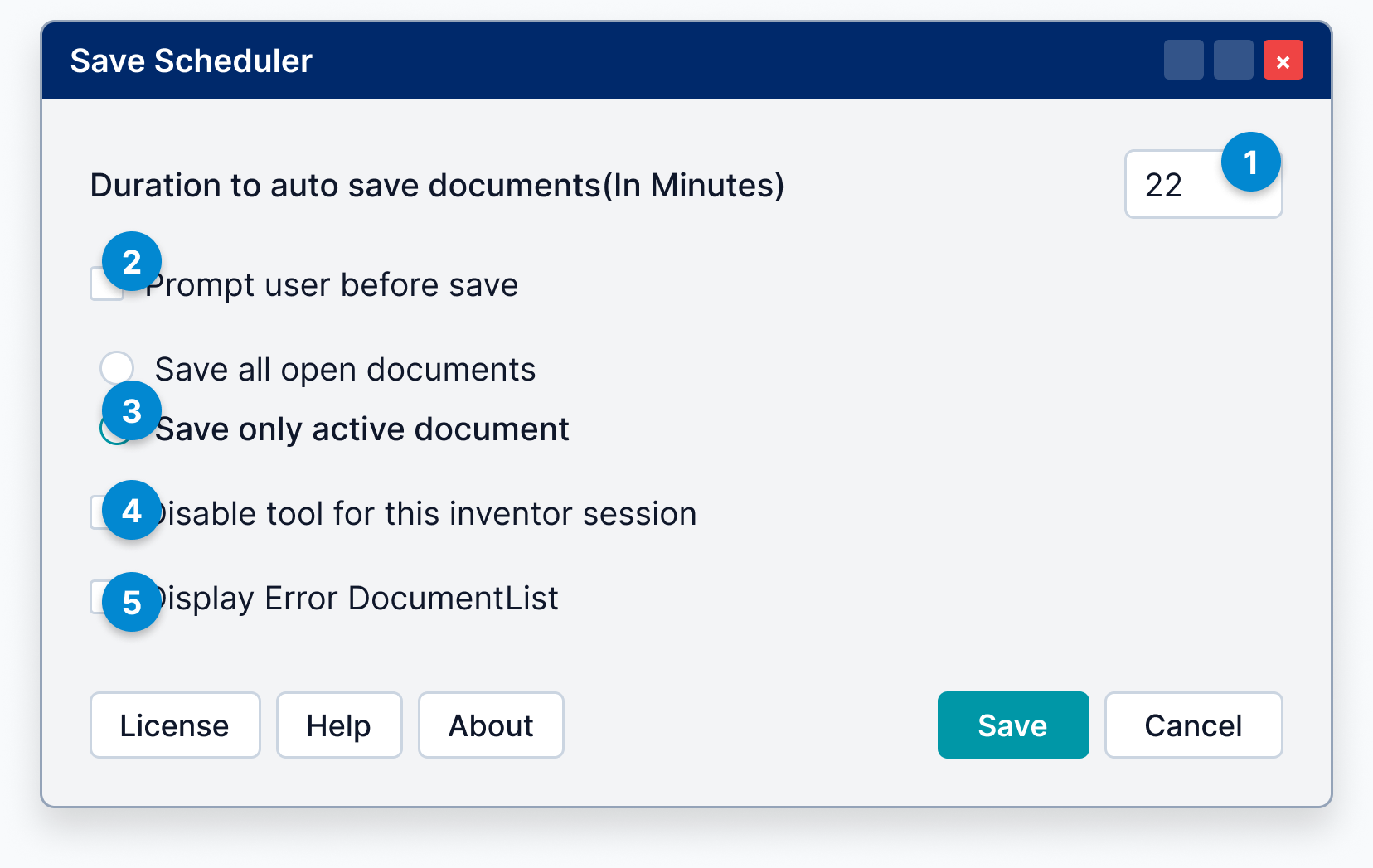

Tool will auto save the documents. User can set this interval between 5 to 60 minutes only.
